FOOTSWITCH

Maxwell heavy-duty, weather resistant units have a UV stabilized water proof diaphragm and are supplied complete with mounting instructions and screws.

FOOTSWITCHES

Maxwell heavy-duty, weather resistant units have a UV stabilized waterproof diaphragm and are supplied complete with mounting instructions and screws.

FOOTSWITCH

Maxwell heavy-duty, weather resistant units have a UV stabilized water proof diaphragm and are supplied complete with mounting instructions and screws.

DUAL DIRECTION SOLENOIDS

Used in conjunction with remote up/down panel, Auto Anchor™ 500C/RC, roving hand held remote control and/or footswitches to switch the motor in the required direction.

• Heavy-duty solenoids, rated at more than 200 amps continuous.

• Optional ignition protected solenoids available.

• Available in 12V or 24V DC for permanent magnet and series wound motors.

• Sealed in a weather proof box.

• Installation in a dry area is always recommended.

REMOTE UP/DOWN CONTROL

Easy to use panel-mounted Up/Down switch for remote windlass operation from the helm, flying bridge or cockpit. Available for use with dual-directional solenoids.

• Manufactured from marine-grade materials.

• Splash proof.

• Includes power indicator light and back lighting.

• Suitable for use with DC 12V or 24V dual-directional solenoids.

Liberty

FEATURES

• Feature packed with innovation and styling, Liberty reaches the same level of superb performance as the Freedom Series, which has become an industry icon.

• Traditional Maxwell design and revolutionary technology ensure classic good looks and trouble-free operation.

• Balance force pressure arm system eliminates snags*

• Rope/chainwheel design ensures maximum grip on rope splice*

• Simply activated emergency/manual crank mechanism*

• Geared manual crank for easy emergency anchor retrieval

• Push button disassembly for easy servicing

• Interchangeability of rope/chainwheel and pressure arm assemblies between

• 1700 and 2500 models allows for use of either rope/chain combination options with either model.

• "Quick Fit" deck plate design saves installation time and money and allows easy retrofitting without disassembly of the windlass.


• Circuit breaker/isolator panel (supplied with DC units only)

• Dual direction solenoid pack

• Up/down remote control panel

• Emergency (manual) crank/clutch release handle

• Maxwell Chain Spacer Kit

ANCHORMAX™

FEATURES

• Extremely high power to weight ratio

• Compact, fully sealed gearbox

• Vertically mounted, high efficiency, permanent magnet motor

• Manufactured in durable anodised marine grade aluminum with chrome manganese bronze top parts

• Precision cut gears

• Minimal Intrusion below decks

• Easy installation - no dismantling of the winch is necessary

• Ideal for boats from 5 to 10 metres

• Footswitch

Features:

Maxwell AA560
Panel Mount Windlass Controller and Rode Counter

• Preset stopping point on retrieval
• One-touch function to deploy and retrieve a preset length of rode
• Adjustable back lit display in feet, metres or fathoms
• Graphic LCD screen featuring intuitive user interface for simple operation
• Displays windlass speed and direction, plus battery voltage
• Safety lock to help protect against accidental windlass deployment
• Logs windlass operation hours to help ensure regular windlass maintenance

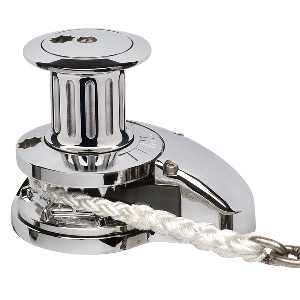

RC10 Automatic Rope/Chain Windlass

• Designed for 5/16" chain and 5/8" rope combination

• Maximum pull: 1540 lbs

• Metric Chain Size: 8mm

• Motor Wattage: 1000W

• Innovative heavy duty stainless steel pressure arm, coupled with a unique rope/chain gypsy, giving an unparalleled level of performance.

• Simple two piece installation, saving time and money and allowing easy retrofitting without disassembly of the windlass.

• Manufactured from marine grade chromed bronze for long term durability

• The topworks can be fully disassembled utilizing the handle provided, a screw driver and common allen key, making regular service and maintenance a breeze. No special tools required!

• A huge, through deck, hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker

• Not only does the RC10 effortlessly handle combination rope/chain rodes, it works just as well with all chain rodes for those who may want the extra security of an all chain systems combined with an elegantly styled, low profile windlass on their foredeck.

• Exclusive Maxwell 3 Year Limited Warranty ensuring your confidence that you are getting the best product on the market.

RC10 Automatic Rope/Chain Windlass

• Designed for 3/8" chain and 3/4" rope combination

• Maximum Pull: 1870lbs.

• Metric chain size: 10mm

• Motor Wattage: 1200W

• Innovative heavy duty stainless steel pressure arm, coupled with a unique rope/chain gypsy, giving an unparalleled level of performance.

• Simple two piece installation, saving time and money and allowing easy retrofitting without disassembly of the windlass.

• Manufactured from marine grade chromed bronze for long term durability

• The topworks can be fully disassembled utilizing the handle provided, a screw driver and common allen key, making regular service and maintenance a breeze. No special tools required!

• A huge, through deck, hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker

• Not only does the RC10 effortlessly handle combination rope/chain rodes, it works just as well with all chain rodes for those who may want the extra security of an all chain systems combined with an elegantly styled, low profile windlass on their foredeck.

• Exclusive Maxwell 3 Year Limited Warranty ensuring your confidence that you are getting the best product on the market.

Rode Counter

Auto Anchor 150 - panel mount rode counter for electric or hydraulic windlasses using all-chain or rope/chain rode.

• Rode length monitoring from the helm.

• Large LCD display with adjustable red back lighting shows length of anchor rode deployed.

• Display in feet or metres.

• Docking alarm warns skipper when anchor is close to docking.

• Easy set up with pre-programmed calibrations for rope/chain ropes.

• Install one or more units or combine with the AA550RC, AA500C or AA601 for multiple stations.

• Works on 12 or 24V DC.

• Standard 60mm (2.36) marine instrument console.

The all new compact HRC6 and HRC8 are Maxwell’s horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses. The new HRC6 and HRC8 are packed with original and proven features including rode management technology developed by Maxwell.

HRC6

• Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up.

• Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design.

• Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation.

• High efficiency spur gearbox incorporating a robust non-backwind mechanism.

• High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch.

• Emergency "free fall" function in the event of onboard power failure.

• Revolutionary new chainwheel - see over.

• Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation, is easily removed for simple routine electric brush maintenance.

• Now incorporating Maxwell’s automatic free-fall technology. Simply activate the windlass ’free fall’ lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the ’free fall’ device automatically disengages allowing you to power up your anchor.

• Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance.

• Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection.

The all new compact HRC6 and HRC8 are Maxwell’s horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses. The new HRC6 and HRC8 are packed with original and proven features including rode management technology developed by Maxwell.

HRC8

• Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up.

• Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design.

• Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation.

• High efficiency spur gearbox incorporating a robust non-backwind mechanism.

• High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch.

• Emergency "free fall" function in the event of onboard power failure.

• Revolutionary new chainwheel - see over.

• Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation, is easily removed for simple routine electric brush maintenance.

• Now incorporating Maxwell’s automatic free-fall technology. Simply activate the windlass ’free fall’ lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the ’free fall’ device automatically disengages allowing you to power up your anchor.

• Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance.

• Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection.

HRC10 Rope/Chain Series

Maxwell’s all new HRC10 Horizontal Series represents yet another breakthrough in performance and anchor handling excellence. These horizontal, fully automatic rope/chain windlasses have been designed to meet the demands for use on larger vessels up to 16 meters (52’), which require a completely above deck installation system. The HRC10 flawlessly handles rope up to 16mm (⅝") and chain up to 10mm (⅜") in size, including the thick rope to chain splice. The modern appearance of the HRC10 Series retains the classic good looks of previous Maxwell horizontal windlasses, while incorporating design features years ahead of its competitors.

All HRC Series windlasses are fitted with Maxwell’s unique Wave Design™ chainwheel.
This patented rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.

As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a ’wave pattern’ action that is far superior to the traditional ’jam cleat’ manner of holding the rope. Not only does this Wave Design™ hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode.

Wave Design™ Chainwheel
Is fitted to all HRC Series windlasses, designed for anchor rodes with any marine grade chain, G4, BBB, Proof Coil and Metric.

Features

• The all new HRC10 fully automatic horizontal windlass series is designed to effortlessly retrieve and deploy 8mm (⁵⁄₁₆") and 10mm (&$8540;") short link chain and 14mm (⁹⁄₁₆") and 16mm (⅝) three strand or 8-brait (plait) rope.

• The aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deck.

• The two part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section.

• This two piece watertight case allows for quick and easy, on-deck, routine maintenance.

• Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up.

• The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain).

• The new and revolutionary patented Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Series.

• The unique Maxwell "wrap around"™ horizontal chainwheel ensures that more than 90° of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs.

• The HRC10 works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system.

• The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.

• Cone type clutch/brake mechanism permits manual, "free fall"™ anchoring and emergency crank recovery of the rode and anchor if required.

• The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel.

HRC10 Rope/Chain Series - No Capstan

Maxwell’s all new HRC10 Horizontal Series represents yet another breakthrough in performance and anchor handling excellence. These horizontal, fully automatic rope/chain windlasses have been designed to meet the demands for use on larger vessels up to 16 meters (52’), which require a completely above deck installation system. The HRC10 flawlessly handles rope up to 16mm (⅝") and chain up to 10mm (⅜") in size, including the thick rope to chain splice. The modern appearance of the HRC10 Series retains the classic good looks of previous Maxwell horizontal windlasses, while incorporating design features years ahead of its competitors.

All HRC Series windlasses are fitted with Maxwell?s unique Wave Design™ chainwheel.
This patented rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.

As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a ’wave pattern’ action that is far superior to the traditional ’jam cleat’ manner of holding the rope. Not only does this Wave Design™ hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode.

Wave Design™ Chainwheel
Is fitted to all HRC Series windlasses, designed for anchor rodes with any marine grade chain, G4, BBB, Proof Coil and Metric.

Features

• The all new HRC10 fully automatic horizontal windlass series is designed to effortlessly retrieve and deploy 8mm (⁵⁄₁₆") and 10mm (&$8540;") short link chain and 14mm (⁹⁄₁₆") and 16mm (⅝) three strand or 8-brait (plait) rope.

• The aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deck.

• The two part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section.

• This two piece watertight case allows for quick and easy, on-deck, routine maintenance.

• Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up.

• The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain).

• The new and revolutionary patented Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Series.

• The unique Maxwell "wrap around"™ horizontal chainwheel ensures that more than 90° of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs.

• The HRC10 works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system.

• The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.

• Cone type clutch/brake mechanism permits manual, "free fall"™ anchoring and emergency crank recovery of the rode and anchor if required.

• The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel.

MAXWELL AA710
WIRELESS, HAND HELD REMOTE WINDLASS CONTROLLER AND RODE COUNTER

All the features of the AA560 plus options to control a bow thruster or deck lights and anchor wash.

• High level wireless transmission security - 2.4GHz ISM band

• Hand held controller displays rode count plus signal strength and battery level

• Console requires two AA batteries

• Ergonomic shape with wrist strap connector

• Water resistant to IP65

• Rubber moulding for grip and non slip protection

• Console holder and protective cover

• Shockproof

• IEEE 802.15.4 compliant
