Sitex SP38 Autopilot Corepack

Rotary Feedback No Compass No Pump

• IST - Intelligent Steering Technology provides superior vessel steering capability
• ADAPTIVE steering for sea conditions and varying vessel speeds
• AUTO-SETUP - allows auto-drive detection, rudder response time, compass detection and calibration
• NMEA 2000, ETHERNET, and NMEA 0183 interface
• Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yacht’s
• WORK Mode suitable for Fishing Boats, Towboats and Workboats
• PRC- Proportional Rate Control feature provides gentle smooth steering response
• Multi-Station capability with security station lock
• SUNLIGHT viewable Color 5.7 in LCD display
• NAV Mode provide adaptive precise track steering
• ALC - Automatic Leeway Compensation for Drift, Tide & Wind
• Fully compatible with onboard instruments and steering systems
• Optional Z-Drive interface allows 360 Azimuth drive interface
• Optional Automatic Bow-Thruster Control for hands free Sabiki Fishing or station keeping
• Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Vietnamese, etc.
• Standard with Flush Mount kit, Optional Swivel mount bracket
• IP67 Waterproof - Control Head, TS4, NF4 and WS4
• RoHS & CE compliance for EMI and RFI immunity
• 9 level backlit LCD display
• LCD Display switches to Red Night Palette to protect Operators night vision
• Pre-defined parameter sets for full or semi-displacement, planning hulls, stern drives and sailboat applications
• Multiple steering parameters for Fast cruise, Slow cruise and Work modes
• Simple to use course knob with mechanical detent
• Multi-station capability with security station lock Automatic trim Adjustable yaw, turn rate and rudder settings PORT and STBD dodge buttons for collision avoidance
• Output for optional analog rudder angle indicator, up to 4 stations
• Fully compatible with onboard NMEA N2K instruments and most steering systems

The new SI-TEX SP-38 is a feature-packed professional autopilot ideal for a wide range of powerboats and commercial vessels up to about 150 feet LOA.

SI-TEX’s Intelligent Steering Technology (IST) learns vessel characteristics over time and fine-tunes itself for optimum performance. The SP-38 offers pre-defined operational parameter sets for full- or semi-displacement hulls, sterndrives and sailboats. It also offers a special Work Mode designed for commercial fishing boats, towboats and workboats. Proportional Rate Control (PRC) provides gentle and smooth steering response.

Other professional features include Nav Mode for adaptive and precise track steering and Automatic Leeway Compensation (ALC) that adjusts for the effects of drift, tide and wind. An optional bow-thruster interface is available for precision drift fishing and hands free station keeping.

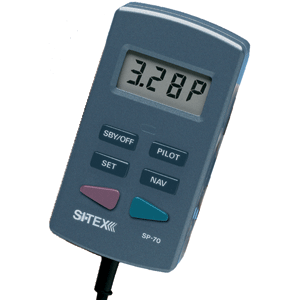

Si-Tex SP70 Autopilot with type S" Mechanical Dashboard Drive with Built-in Rudder Reference

• Ultra-compact

Si-Tex SP70 Autopilot with type T" Mechanical Dashboard Drive with Built-in Rudder Reference

• Ultra-compact

Si-Tex SP-80 Autopilot with Rotary Rudder Reference No Drive

• Designed for Outboard, Inboard, and Sterndrive vessels with Hydraulic or Mechanical steering systems.
• Automatically pilots to your next waypoint using built-in NMEA 0183 Loran/GPS interface.
• Waterproof control head easily installs flush or surface mounted.
• System can be expanded by adding fully functional second-station option with the SI-TEX SP-70 Handheld Control Unit.
• Bold, backlit display with ten levels of brightness for clear reading in any light.
• Accurate digital displays of rudder angle and operating mode in use, constantly giving you up-to-the minute operating status.
• Automatic Sea State and Trim controls and 10 selectable levels of rudder sensitivity with high and low speed settings for smooth, precise steering.
• Rudder feedback verifies autopilot’s commands.
• Ghost Rudder backup allows autopilot to use memory of rudder movements to calculate new movements in event of rudder feedback failure.
• Heading Output feature allows you to stabilize radar display.
• Built-in diagnostics and self tests, plus visual and audible alarms.
• Power Steering mode offers convenient push-button steering. Stand-By mode for manual steering situations.
• Works with solenoid valves also.

For boaters who know where they’re going. SP-80 takes you where you want to be--effortlessly. Its smart, precise piloting gives you the extra hand on deck you’ve always needed. And the operation is a snap: Simply set the course and the SP-80 takes the controls, piloting you to your destination with ease and precision. So bait the lines or simply enjoy the sunset. With the SI-TEX SP-80 Autopilot you’re right on course. Hands free, and ready to go.

• SP-80 Control
• Compass
• Computer
• Rotary Rudder Reference

Si-Tex SP-80 Autopilot with Type S" Mechanical Dashboard Drive w/Built-in Rudder Reference Drive

• Designed for Outboard

Si-Tex SP-80 Autopilot with Type T" Mechanical Dashboard Drive w/Built-in Rudder Reference Drive

• Designed for Outboard

Si-Tex SP-80 Autopilot with Type R" Mechanical Dashboard Drive w/Built-in Rudder Reference Drive

• Designed for Outboard

Si-tex SVS-560CF Chartplotter/Fishfinder 5 in display, Internal Antenna Model: SVS-560CF

• 5 in high-resolution color LCD with a built-in dual-frequency fishfinder.
• 52-channel GPS w/standard internal antenna
• "Dual fuel" charting with C-MAP and Navionics cartography
• Unit pre-loaded w/Navionics Gold North American Chart Card
• Global GPS compatibility (U.S., European Galileo, Russian Glonass and Asian QZSS)
• Brilliant LED backlighting for daylight
• Easy, intuitive operation and control

The new SVS-560CF proves that you don’t need a big boat - or a big bankroll- to benefit from SI-TEX’s rugged construction and professional-grade performance. This compact chartplotter and chartplotter/sounder systems deliver the goods for any vessel, from center console skiffs to sailboats to light commercial boats.

• Display
• Knobs
• Powercord
• Gimbal Bracket
• Owners Manual
• Screws
• Fuse

Si-tex SVS-560CF Chartplotter/Fishfinder 5 in display, External Antenna Model: SVS-560CFE

• 5 in high-resolution color LCD with a built-in dual-frequency fishfinder.
• 52-channel GPS with external antenna
• "Dual fuel" charting with C-MAP and Navionics cartography
• Unit pre-loaded w/Navionics Gold North American Chart Card
• Global GPS compatibility (U.S., European Galileo, Russian Glonass and Asian QZSS)
• Brilliant LED backlighting for daylight
• Easy, intuitive operation and control

The new SVS-560CF proves that you don’t need a big boat - or a big bankroll- to benefit from SI-TEX’s rugged construction and professional-grade performance. This compact chartplotter and chartplotter/sounder systems deliver the goods for any vessel, from center console skiffs to sailboats to light commercial boats.

• Display
• Knobs
• Powercord
• Gimbal Bracket
• Owners Manual
• Screws
• Fuse
• External Antenna

Si-tex SVS-760F 7.5 in Color FishFinder

• 600W output/dual frequency operation
• Vertical 480X800 pixel display delivers optimum sounding data
• High-speed CPU presents all fish targets
• IPX7 Waterproof rating for flexible installation
• Professional features include Bottom Discrimination, Bottom Lock, Bottom Zoom, A-Scope
• Alarms for Depth, Fish School and Water Temperature

• Display
• Bracket
• Knobs
• Power cord
• Manual

Sitex SVS-880C+ 8in Color Chartplotter With External Antenna

• 8" high-resolution color LCD and compact case.
• 52-channel GPS
• "Dual fuel" charting the C-MAP and Navionics cartography
• Pre-loaded w/Navionics Gold North American Chart Card
• Global GPS compatibility
• Brilliant LED backlighting for excellent sunlight readability
• Easy, intuitive operation and control
• Video input for underwater and on-deck cameras
• Optional Wireless Remote Control

The SI-TEX SVS-880C is a powerful big-screen performer designed to fit every boat and budget. This compact chartplotter system delivers the goods for any vessel, from center console skiffs to sailboats to light commercial boats.

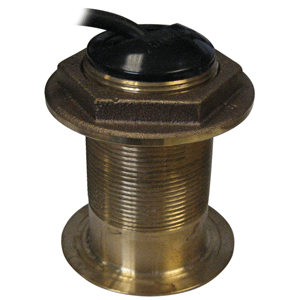

Airmar’s B164 8-pin bronze, thru-hull mount transducer with 0 deg tilt provides depth and temperature. This transducer has an operating frequency of 50 or 200 kHz and mounts on a 0-7 deg deadrise angle.,/p>

Airmar’s B164 8-pin bronze, thru-hull mount transducer with 12 deg tilt provides depth and temperature. This transducer has an operating frequency of 50 or 200 kHz and mounts on a 8-15 deg deadrise angle.,/p>

Airmar’s B164 8-pin bronze, thru-hull mount transducer with 20 deg tilt provides depth and temperature. This transducer has an operating frequency of 50 or 200 kHz and mounts on a 16-24 deg deadrise angle.,/p>

Features

• Fixed 20 deg tilted version for 16 deg to 24 deg hull deadrise
• Fixed 12 deg tilted version for 8 deg to 15 deg hull deadrise
• Engineered for center-console and trailered boats
• Low-profile protrusion below the hull
• No affect on your boats running performance
• Bronze or stainless steel housings available
• Arrow on cap points toward keel when installed
• Built-in temperature sensor

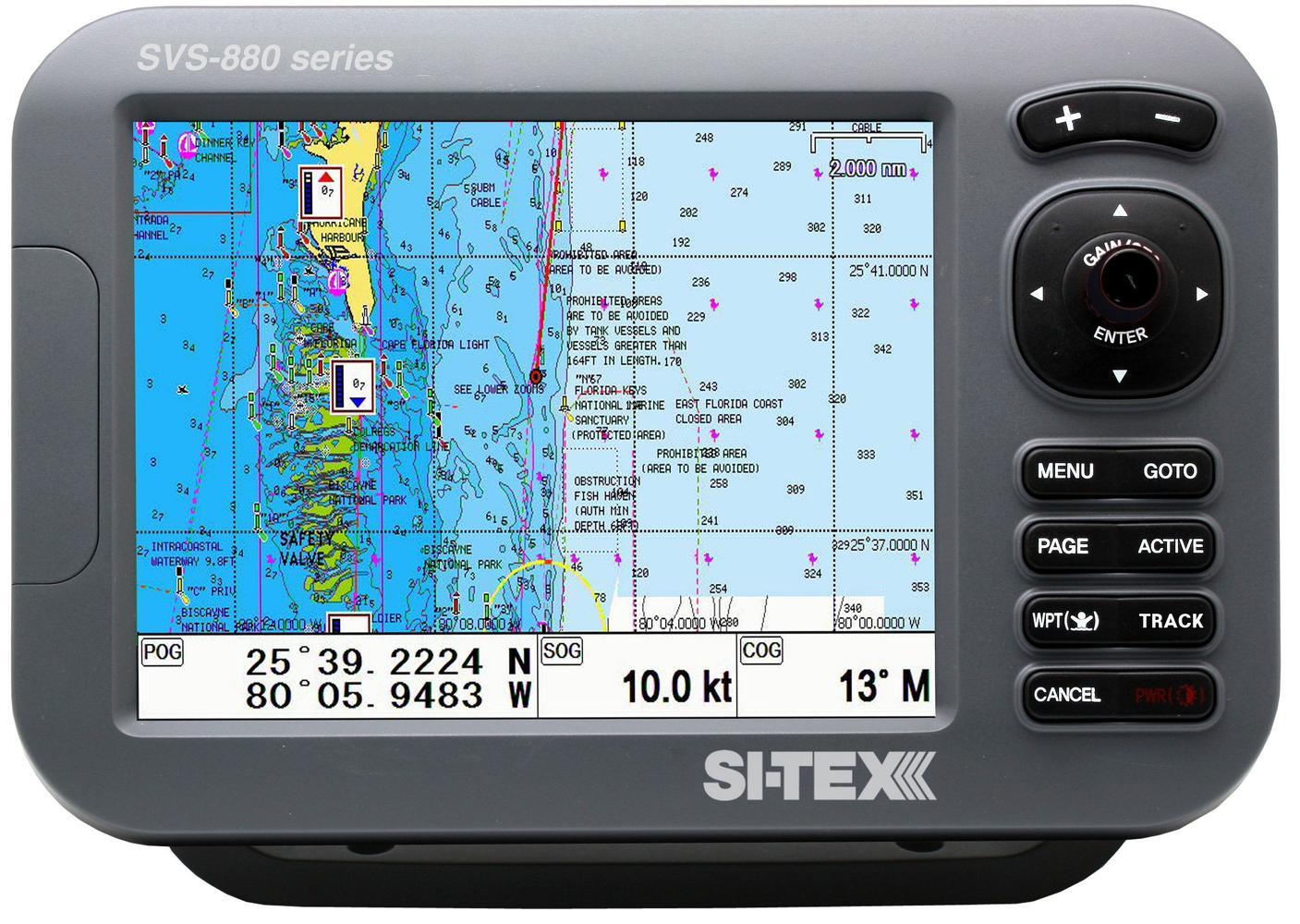

Sitex SVS-880C+ 8in Color Chartplotter

• 8" high-resolution color LCD and compact case.
• 52-channel GPS
• "Dual fuel" charting the C-MAP and Navionics cartography
• Pre-loaded w/Navionics Gold North American Chart Card
• Global GPS compatibility
• Brilliant LED backlighting for excellent sunlight readability
• Easy, intuitive operation and control
• Video input for underwater and on-deck cameras
• Optional Wireless Remote Control

The SI-TEX SVS-880C is a powerful big-screen performer designed to fit every boat and budget. This compact chartplotter system delivers the goods for any vessel, from center console skiffs to sailboats to light commercial boats.

Sitex SVS-880CF+ 8in Color Fishfinder Chartplotter

• 8" high-resolution color LCD and compact case.
• 52-channel GPS
• "Dual fuel" charting the C-MAP and Navionics cartography
• Pre-loaded w/Navionics Gold North American Chart Card
• Global GPS compatibility
• Standard equipped with internal GPS antenna, no need to mount a seprate GPS antenna.
• Optonal External GPS antenna can be connected
• 600 watt dual frequency 50/200 kHz Digital Echo Sounder
• Brilliant LED backlighting provides excellent sunlight readability
• Easy, intuitive operation and control
• Video input for underwater and on-deck cameras
• Optional Wireless Remote Control

The SI-TEX SVS-880CF is a powerful big-screen performer designed to fit every boat and budget. This compact chartplotter and chartplotter/sonar system delivers the goods for any vessel, from center console skiffs to sailboats to light commercial boats.

Features

• Fixed 20 deg tilted version for 16 deg to 24 deg hull deadrise
• Fixed 12 deg tilted version for 8 deg to 15 deg hull deadrise
• Engineered for center-console and trailered boats
• Low-profile protrusion below the hull
• No affect on your boats running performance
• Bronze or stainless steel housings available
• Arrow on cap points toward keel when installed
• Built-in temperature sensor

Features

• Fixed 20 deg tilted version for 16 deg to 24 deg hull deadrise
• Fixed 12 deg tilted version for 8 deg to 15 deg hull deadrise
• Engineered for center-console and trailered boats
• Low-profile protrusion below the hull
• No affect on your boats running performance
• Bronze or stainless steel housings available
• Arrow on cap points toward keel when installed
• Built-in temperature sensor

Features

• Fixed 20 deg tilted version for 16 deg to 24 deg hull deadrise
• Fixed 12 deg tilted version for 8 deg to 15 deg hull deadrise
• Engineered for center-console and trailered boats
• Low-profile protrusion below the hull
• No affect on your boats running performance
• Bronze or stainless steel housings available
• Arrow on cap points toward keel when installed
• Built-in temperature sensor

• 7 inch color wide LCD display with TOUCH screen
• Hi-performance 4kW 1.5ft ( T-760 24NM)/2ft (T-761 48NM) radome scanner
• Easy operation with TOUCH and rotary encoder dial
• 50 Target AIS Tracking - Standard
• 10 Target MARPA - Standard
• Multi-Speed Antenna Rotation
• Optional Color RGB video output

Features Powerful 1 kW Output, with 10.4-inch LCD Display, Digital Signal Processing and Digital Filtering

• Professional-grade color LCD echo sounder with advanced Digital Signal Processing and Digital Filtering for superior bottom-reading performance and clearer target images in all depths.

• Provides both professional and serious recreational fishermen with a range of important advantages, including depth range scales from 10 to 6,000 feet, superior clutter suppression and signal-to-noise ratio, and a faster transmission rate for enhanced shallow-water performance. Its digital design helps the CVS-1410 detect fish close to the bottom in depths never before possible when using a high-frequency transducer. In fact, the 1kW dual-frequency (50/200kHz) CVS-1410 performs as well as or better than many 2kW and 3kW sounders, making it an affordable professional-grade alternative for any vessel.

• Bottom detail and fish targets are presented on the CVS-1410’s 10.4-inch color TFT LCD display with 640X480 pixel (VGA) resolution. SI-TEX offers the CVS-1410 with several different Transducer choices, allowing the boater to choose the ideal option for his preferred target fish, fishing methods and geographic region.

• Whichever version you choose, the CVS-1410 provides a range of useful and unique features designed to enhance fishing success. These include SI-TEX’s Detection Area Display, which indicates with numbers and graphic beam angle illustrations the bottom area covered at high and low frequencies. This information is important for boaters to determine the location of fish on the display in relation to the vessel. SI-TEX’s exclusive Sona-ToneTM feature provides further help identifying what’s under the boat with differing audible alerts for fish and schools of fish.

• The CVS-1410 also offers an Image storage feature that holds up to 10 "Snap-Shot" screen display images in its built-in memory for later recall with the touch of button. To help skippers return quickly to fishing hot spots or other previously saved positions, the CVS-1410 offers an easy-to-understand back track navigation display (with optional GPS input) right on the sounder screen. Two programmable Function keys can be customized for quick and easy access to any menu item without having to open up the menu.

• While the new CVS-1410 is packed with advanced features, it also offers an Auto Function mode that makes it easy for anyone ? even the novice user ? to achieve ?Hands FreeTM professional results.

Range unit m, fm, l.fm, ft

Shift step 1m, 10m, 1/8, 1/4,; 3ft, 30ft

Zoom Range 2.5m to 200m; 8ft --? 650ft

Color Tone Monochrome, 9 color, 16 color, 64 color

Input data format & sentences NMEA0183 Ver.1.5/2.0/3.0; GGA, GLL, HDT, MTW, MWV, RMC, VHW, VTG, ZDA

Output data format & sentences NMEA0183 Ver 2.0 (DBT only Ver.1.5); DBT, DPT, GGA, GLL, HDT, MTW, MWV, RMC, TLL, VHW, VTG, ZDA

Power Supply 10.8 to 31.2 VDC

Power Consumption 30 W or less (at 24V DC)

Range of Operating Temperature --?15o C to +55o C

Store Temperature --?30o to +70oC

Water Protection IPX5

Size of Cabinet 13 in x 12.5 in x 6.8 in

Weight 16.4 lbs

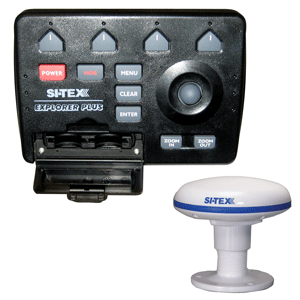

SI-TEX Explorer NavPro WiFi Multi-Function Navigation System With GPS Antenna

• HDMI Video Output - replaces the original VGA Output of older models
• NMEA-2000 Network provides Engine Monitoring Capability & AIS Integration
• 2 NMEA-0183 Ports + GPS Smart Antenna Port
• Gigantic 4GB of Internal Mark and Track Memory
• New Easy to use Operating System
• Extremely Fast Ultra Powerful Processor
• New File Management System makes it very easy to save, edit and manage Mark, Track, and Route Memories
• Uses C-Map Max mini SD Card format for Navigation Chart Data
• GPS Smart Antenna

• Digital signal processing
  SI-TEX’s state-of the-art digital signal processor offers advanced filtering capabilities. The SI-TEX Digital Filtering feature eliminates clutter by filtering out the noise to provide a clear detailed image that enhances fish targets in shallow and deep depths. Making it easy to differentiate between baitfish, larger fish, schools of fish and the sea floor.

• Sona-Tone
  Exclusive Sona-Tone identifies what’s under your boat with different sounds for fish and schools of fish. So you will not miss any good opportunites even if you are away from the CVS-126.

• Automatic Functions
  For best performance the Auto Function mode chooses the most reliable setting for such functions as Gain, Range and Shift. The optimum settings are continuously selected automatically. (GAIN, RANGE, SHIFT)

• Fishing Hot Spots
  Leads you back to your favorite fishing hot spots or other previously saved positioning in memory with input from optional GPS sensor.

• Store the Image
  YouStores up to 10 screen images in built-in memory for recalling later by "one-touch". Great for recalling a potential hot spot for review later.

• Easy Operation
  Easy access to all system functions with simply arranged keypad, dedicated-functions keys, rotary-knob control of Gain/Selection and comprehensive on-screen menus.

• Sunlight Viewable
  Brilliant 5.7 in color LCD display with 8, 16, or 64 color levels and an anti-reflective coating for excellent readability in direct sunlight.

• Dual-Frequency (50/200kHz) operation with digital signal processor (DSP) for a clearer image that enhances fish targets in shallow and deep depths, plus auto function for the most reliable setting and best performance

• Boasts 1000 or 600 watts with 8 ranges from 10-3600 feet.

• Exclusive Sona-Tone identifies what’s under your boat with different sounds for fish and schools of fish.

• Stores up to 10 screen images in built-in memory for recall later. RGB output for connecting optional external VGA monitor.

• High-speed pulse rate transmission of 5000 times per minute for enchanced shallow water detection.

• Other features: anti-reflective display, easy operation, auto fishing/cruising modes, audio/visual alarms, Fishing Hot Spot function leads you back to your favorite fishing hot spots with GPS sensor input, IPX5 waterproof rating, over-head and built-in flushing mounting. 10.8~31.2 VDC

SI-TEX CVS-128 Digital Echo Sounder- Specifications
Display	8.4 in TFT Color LCD (640 x 480 pixels)
Display Colors	8, 16, 64 or monochrome
Power Requirments	10.8 ~31.2V DC.
Power Consumption	25w or less at 12V DC
Operating Frequency	Dual Frequency 50/200 kHz
Output Power	600W/1000W
Background Colors	Blue, dark blue, black, white, nighttime and 5 other colors
Display Modes	High frequency, Low frequency, Dual frequency, Zoom image, Nav mode, A-Scope (can be added all above modes), left and right divided
Zoom Modes	Bottom lock, Bottom discrimination, Bottom zoom, Zoom, Sea Bottom, Partial zoom
Depth Ranges*	8 ranges from 10 to 3600 feet
Zoom Ranges	10 to 650 feet (23 steps)
Audible Alarm	Fish, bottom, depth, temperature**, speed ***, arrival****, XTE****
Image Speed	9 levels plus stop
Image Shift	Auto or Manual (0 to 1000 feet)
Auto Functions	Depth range, Shift and Gain
Languages	English, Spanish, French, Greek, Italian, Japanese, Korean, Chinese, Thai
Distance Unit	ft, m, fm, 1, FM
Input Format	NMEA0183 (GGA, GLL, ZDA, VTG, RMC, MTW, VHW, MWV, HDT)
Output Format	NMEA0183 (DBT, DPT, GGA, GLL, MTW, RMC, TLL, VHW, VTG, ZDA, HDT, MWV)
Other Functions	Interference rejection, Color rejection, Depth marker (VRM), Event Memory, Panel illumination, Draft adjustment, Temperature correct, Boat speed correct, White line, Sona-Tone?, Power reduction, Built-in simulator, Noise rejection, Simple Plotter
Waterproof Rating	IPX 5
Operating Temperature	5 deg to 131 degF (-15 deg to +55 degC)
Case Size/Weight	9.5"W x 9.5"H x 4.5"D, 7.2 lbs

SI-TEX Explorer NavPro WiFi Multi-Function Navigation System

• HDMI Video Output - replaces the original VGA Output of older models
• NMEA-2000 Network provides Engine Monitoring Capability & AIS Integration
• 2 NMEA-0183 Ports + GPS Smart Antenna Port
• Gigantic 4GB of Internal Mark and Track Memory
• New Easy to use Operating System
• Extremely Fast Ultra Powerful Processor
• New File Management System makes it very easy to save, edit and manage Mark, Track, and Route Memories
• Uses C-Map Max mini SD Card format for Navigation Chart Data

Si-Tex Vector V200 Satellite Compass - NMEA0183

• L1 GPS, GLONASS, Galileo, BeiDou, QZSS
• Optional 30 cm RMS world-wide positioning accuracy with Atlas corrections
• 0.75 degree heading accuracy in an amazingly small form factor
• Excellent in-band and out-of-band interference rejection
• Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites
• Provides heading, positioning, heave, roll, and pitch
• Comes with 15 meter NMEA-0183 Cable

Experience superior navigation from the accurate heading and positioning performance available with the VectorTM V200 GNSS compass. The multi-GNSS Vector V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30 cm (RMS) accuracy via Hemisphere’s Atlas GNSS global correction service.

The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass - measuring only 35 cm in length - mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems

Si-Tex Vector V200 Satellite Compass - NMEA2000

• L1 GPS, GLONASS, Galileo, BeiDou, QZSS
• Optional 30 cm RMS world-wide positioning accuracy with Atlas corrections
• 0.75 degree heading accuracy in an amazingly small form factor
• Excellent in-band and out-of-band interference rejection
• Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites
• Provides heading, positioning, heave, roll, and pitch

Experience superior navigation from the accurate heading and positioning performance available with the VectorTM V200 GNSS compass. The multi-GNSS Vector V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30 cm (RMS) accuracy via Hemisphere’s Atlas GNSS global correction service.

The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass - measuring only 35 cm in length - mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems

Sitex GPK-11C NMEA 0183 Output

• Delivers bettter than 2 meter accuracy
• Low Profile Housing, Pole or Flush mountable
• IP67
• Works with any Si-Tex Chartplotter
• Outputs NMEA-0183 GGA, RMC, GSA, GSV, TXT
• Inputs voltage 10v DC to 35v DC @0.8W
• Works with any Si-Tex unit and any unit requiring NMEA-0183 input of GPS

Smart SDGPS Sensor Antenna based on a 16 ch. GPS

Metadata Class B AIS Transceiver Module

Next generation RmaxTM AIS technology provides state-of-the-art Class B AIS performance in a rugged, compact module. See and be seen with this advanced new SI-TEX AIS solution for any size of vessel.

Description

• Internal 50-channel GPS smart antenna eliminates need for external GPS

• Fully IPx7 waterproof rated and measures only 5.5"X3.9X1.9 in

• Designed for plug-and-play integration with chartplotters, radars, onboard PCs

• Next generation RmaxTM AIS technology for fast signal processing, maximum reception range and real-time decoding of all AIS messages

• Built-in NMEA0183 and NMEA2000(R) interfaces for easy connectivity

• Additional USB interface can be used to power module

Metadata Dual Channel AIS Receiver Module

Next generation RmaxTM AIS technology maximizes reception range and ensures that all incoming AIS messages are received and fully decoded in real time. Designed for plug-and-play performance with chartplotters, radars, onboard PCs and other marine electronics.

Description

• Fully IPx7 waterproof rated and measures just 5.5"X3.9"X1.9 in
• NMEA 0183 and NMEA2000(R) interfaces for easy connectivity
• Additional USB interface can be used to power module
• Dual channel performance ideal for tracking all AIS-equipped vessels

MDA-3: The Metadata zero loss VHF antenna splitter is the world?s most effective antenna splitter, developed specifically for use with Class B AIS transceivers. Using sophisticated technology it offers unrivalled performance and reliability ensuring maximum AIS and VHF Radio performance in all situations. Antenna splitter features Built in automatic safety features such as clear call routing (CCR) which ensures VHF radio emergency call priority and continued full performance operation even when power fails! Includes output for FM broadcast receiver.

Si-tex Vector Pro G2 GPS Compass

• The rugged enclosure combines GPS’ Crescent Vector board and two multipath-resistant antennas for simple installation
• The half-meter length smart antenna mounts easily to a flat surface or pole
• The stability and maintenance-free design of the Vector Pro replaces traditional gyrocompasses at a fraction of the cost
• IMO Wheelmarked for Commercial applications

Experience superior navigation from the accurate heading and positioning performance available with the Vector Pro G2 Series GPS Compass.

Si-tex Vector Pro G1 GPS Compass

• Small compact all-in-one maintenance free unit
• Fully compatible with NMEA 2000 or 0183 equipment: Autopilots, Radar, AIS, Plotters, etc.
• Accurate 2D heading and positioning data
• Better than 0.60 degree Heading accuracy
• 90o Rate of Turn tracking (ROT)
• Provides Heave, Pitch and Roll information
• DGPS provides sub-meter positioning accuracy
• Differential Correction source SBAS (WAAS, EGNOSand MSAS) and RTCM SC-104 data (External Source)
• COASTTM technology maintains differentially-corrected position for 40 minutes or more with loss of differential signal
• Integrated Gyro & Tilt sensors provide fast start up times and Heading updates during temporary loss of GPS
• 20 Hz position and Heading update rates (10Hz standard)
• Multiple BAUD rate selections
• CE certified for EMI and RFI immunity
• Pre-programmed default settings for Heading, Rate of Turn, Course over Ground, Lat/Long Geographic position, Time & Date
• 2 year warranty

Sitex MDA-5 Class B/So AIS Transceiver

• The MDA-5 is the world’s most sophisticated fully certified 5-Watt SOTDMA Class B AIS Module on the market
• 5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
• SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don’t have network priority.
• Integrated zero loss VHF antenna splitter - no second antenna needed
• Built-In 802.11 b/g/n Long Range WIFI allows unit to send AIS and Position data to any WIFI connected devices
• NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems
• Built-In GPS & GLONASS satellite navigation receiver
• Water Proof certified to IPX7
• Dual Receivers decodes all DSC & AIS messages, including MOB & SART
• Ultra-power efficient
• IEC-62287-2, FCC and USCG certified
• 2 Year Warranty

• MDA-5 Transceiver
• Commercial Grade External GPS Antenna with Coax Cable
• Mounting hardware
• Power & Data Interface cable
• VHF Radio Connection cable
• Product information DVD

Sitex MDA-5 Class B+ SOTDMA AIS Transceiver NO Wifi

• The MDA-5 is the world’s most sophisticated fully certified 5-Watt SOTDMA Class B AIS Module on the market
• 5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
• SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don’t have network priority.
• Integrated zero loss VHF antenna splitter - no second antenna needed
• Water Proof certified to IPX7
• NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems
• Built-In GPS & GLONASS satellite navigation receiver
• 2 Year Warranty
• Dual Receivers decodes all DSC & AIS messages, including MOB & SART
• Ultra-power efficient
• IEC-62287-2, FCC and USCG certified

• MDA-5H Transceiver
• Commercial Grade External GPS Antenna with Coax Cable
• Mounting hardware
• Power & Data Interface cable
• VHF Radio Connection cable
• Product information DVD

Si-Tex MDA-6 Class B/SO AIS Transceiver

• 5W SOTDMA Class B/SO for long-range, high-priority AIS transmission
• High-fidelity AIS performance for precise, reliable tracking
• Integrated high-power Wi-Fi for tablets and laptops
• Bluetooth programming app for fast setup and troubleshooting
• AIS Control App with WAZE-style hazard reportin
• NMEA 0183, NMEA 2000 & USB connectivity
• Low power consumption
• External GPS antenna included
• IP67 waterproof, dustproof, vibration-proof
• Compact, lightweight design
• IEC-62287-2, FCC & USCG certified

The SI-TEX MDA-6 delivers Class-A—level transmit priority, rapid update rates, and 5-watt SOTDMA transmission—more than twice the power of standard Class B AIS units. Your vessel is detected earlier and at greater distances, even in demanding or congested waterways

The MDA-6 broadcasts continuous dynamic data including SOG, COG, heading, and hazard reports, giving surrounding vessels a clearer, more accurate picture of your movements.

The MDA-6 is engineered for reliability in real-world conditions. Its IP67-rated housing protects against water, dust, and vibration, while its compact footprint allows flexible installation on any vessel.

Sitex SAS-600 Class B AIS

• The SAS-600 is the world’s most sophisticated fully certified 5-Watt SOTDMA Class B AIS Transceiver
• SOTDMA AIS units have the same network priorities as Commercial Class A AIS units
• 5-Watt transmitter power more than double the transmit power of traditional Class B AIS Transceivers.
• Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
• SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don’t have network priority.
• Built-In 802.11 b/g/n Long Range WIFI allows unit to send AIS and Position data to any WIFI connected devices
• 3 NMEA-0183 data ports & NMEA-2000 intelligent connectivity to all bridge systems
• Hi-Definition 5.7 in full color sunlight viewable Day-Night dimmable LCD Display
• Uses C-Map Max Cartography
• Built-In GPS & GLONASS satellite navigation receiver packaged with a commercial quality external GPS antenna
• Unit is easily flush mounted without any special brackets, and comes with a rugged pedestal mounting
• Water & Weather Proof certified to IPX6 & IPX7
• MOB & SART alert tracking system
• Receives and decodes all AIS messages
• Ultra-power efficient <12w power consumption, 12 to 24 VDC
• Intuitive easy to use multi-lingual menu system
• Sends and Receives AIS Text Messages to selected vessels and safety related messages
• AIS CPA/TCPA Collision Alarms
• 2 Year Warranty

Sitex SAS-900 Class A AIS

• Internationally certifed SOLAS, MED, FCC, Inland Waterway, Industry Canada
• IPx6 & IPx7 water and weather proof
• Inter-operable with all other bridge system
• High performance detailed Electronic Charts - C-Map
• Multi-lingual, intuitive user interface
• MOB & SART alert and tracking
• Integrated WiFi
• NMEA0183 & 2000

SAS-900 is the world’s most sophisticated and robust SOLAS and Inland-Waterway certified AIS Class A Transceiver.

Fourth generation AIS technology delivers unmatched real world AIS receive, transmit and message processing performance and reliability. Quality engineered and manufactured without compromise, with features such as IPx7 weather proofing and integrated shock & vibration protection for continuous long term operation in even the harshest commercial or military environment.

A large integrated high definition color screen maximizes the benefit of the SAS-900’s powerful Electronic Chart display engine with full detailed chart AIS overlay, and multiple target management functionality, including innovative MOB features and many more.

• SAS900
• Mounting bracket
• GOS Antenna with cable
• 18 way data cable
• 14 way data cable
• Power cable
• Mounting hardware
• Documentation

Si-Tex SCS-1000 CHIRP Echo Sounder Module

• Compatible with AIRMAR and Radarsonics transducers.
• AIRMAR transducers: Xducer ID(R) detection system automatically selects the power output and configures the parameters to suit the transducer
• Display mode: Single and Dual frequency (CW only)
• Alarms: shallow water, deep water, water temperature, etc.
• Zero line rejection
• Echogram history
• Point on map
• Calibration: temperature offset and speed offset
• Waterproof and shock resistant housing

The SI-TEX CHIRP Echo Sounder is designed to be easily connected and combined with SI-TEX NavPro multifunction chartplotters* to turn it into an Echo Sounder.

CHIRP Echo Sounder is compatible with both AIRMAR CHIRP and CW transducers, and with Radarsonics CW transducers. It can be coupled with various types of transducers: plastic stern thru hull, in hull, or bronze thru hull.

CHIRP Echo Sounder features advanced filtering, that eliminates unwanted noise and sharpens echoes to enhance separation and detection.

CHIRP Echo Sounder supports Zero Line rejection: Depending on the transmission line of a transducer, you can increase or decrease Zero Line Area" values.

Operation frequency may vary depending on the model of transducers. CHIRP Echo Sounder supports double frequency mode for CW transducers. Dual mode splits the "Fish Finder"

Si-Tex Sirius 12 Gyrostabilized

• IPX7 Waterproof Performance
• Full multi/oil and water repellent coating
• Ideal for dome concerts and sports games at 12x
• Built-in gyro sensor
• 12-hour operation with one alkaline battery
• 12-hour operation with one alkaline battery

SIRIUS 12 features a unique 6-axis gyro sensor designed to compensate for camera shake. This enables precise viewing in shaky environments, making it ideal for observing performers from stadium stands, enjoying sports games, or birdwatching from a distance. The anti-vibration function is easily activated by toggling the ON/OFF lever located on the top of the main unit.

The main unit is fully waterproof with an IPX7 rating, suitable for both indoor and outdoor use. It can withstand rain at festivals or stadium gigs without any issues.

Fully multi-coated lenses are utilized to minimize light transmission loss, ensuring a bright and clear field of view. Additionally, both the eyepiece and objective lenses are coated with a water and oil-repellent coating to prevent lens contamination.

It operates for 12 hours on a single AAA alkaline battery. With automatic power-off after 30 minutes, it allows for extended usage without concern for battery depletion, even in remote mountainous or maritime environments.

It features a 1/4 screw hole

Si-tex SP120C Autopilot with Rudder Feedback and No Drive

• The SI-TEX SP-120C is a new Autopilot designed for hydraulic steering, mechanical steering, & solenoid control
• Does not require a separate junction box, everything simply connects to the rear of the control head
• Does not require a separate junction box, everything simply connects to the rear of the control head
• SP-120C displays actual Compass heading & Selected Heading, along with Rudder Angle Displays simultaneously
• Compact 4.1 in x 4.1 in Splash proof Control head with large easy to read Color LCD LCD Display
• Extremely easy to select your desired headings, operate, and setup, with new user friendly software
• High performance 9 Axis Rate Gyro Compass provides the autopilot with excellent steering respons
• Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to enhance performance
• NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes
• NMEA-0183 Output of Compass heading at 10kHz for interface to MFD’s with Chart/Radar Overlay

• SI-TEX SP-120C Color LCD Autopilot Control Head
• NMEA Interface Cables
• 9 Axis Electronic Rate Gyro Compass
• Control Head Sun cover
• Product manual
• Mounting Screws
• Rudder Reference

Si-tex SP120C Autopilot with Rudder Feedback and 9ci Pump

• The SI-TEX SP-120C is a new Autopilot designed for hydraulic steering, mechanical steering, & solenoid control
• Does not require a separate junction box, everything simply connects to the rear of the control head
• Does not require a separate junction box, everything simply connects to the rear of the control head
• SP-120C displays actual Compass heading & Selected Heading, along with Rudder Angle Displays simultaneously
• Compact 4.1 in x 4.1 in Splash proof Control head with large easy to read Color LCD LCD Display
• Extremely easy to select your desired headings, operate, and setup, with new user friendly software
• High performance 9 Axis Rate Gyro Compass provides the autopilot with excellent steering respons
• Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to enhance performance
• NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes
• NMEA-0183 Output of Compass heading at 10kHz for interface to MFD’s with Chart/Radar Overlay

• SI-TEX SP-120C Color LCD Autopilot Control Head
• NMEA Interface Cables
• 9 Axis Electronic Rate Gyro Compass
• Control Head Sun cover
• Product manual
• Mounting Screws
• Rudder Reference
• 9ci Pump 12v

Si-tex SP120C Autopilot with Rudder Feedback and Type S Drive

• The SI-TEX SP-120C is a new Autopilot designed for hydraulic steering, mechanical steering, & solenoid control
• Does not require a separate junction box, everything simply connects to the rear of the control head
• Does not require a separate junction box, everything simply connects to the rear of the control head
• SP-120C displays actual Compass heading & Selected Heading, along with Rudder Angle Displays simultaneously
• Compact 4.1 in x 4.1 in Splash proof Control head with large easy to read Color LCD LCD Display
• Extremely easy to select your desired headings, operate, and setup, with new user friendly software
• High performance 9 Axis Rate Gyro Compass provides the autopilot with excellent steering respons
• Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to enhance performance
• NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes
• NMEA-0183 Output of Compass heading at 10kHz for interface to MFD’s with Chart/Radar Overlay

• SI-TEX SP-120C Color LCD Autopilot Control Head
• NMEA Interface Cables
• 9 Axis Electronic Rate Gyro Compass
• Control Head Sun cover
• Product manual
• Mounting Screws
• Rudder Reference
• Type S Drive

Si-tex SP120C Autopilot with Rudder Feedback and Type T Drive

• The SI-TEX SP-120C is a new Autopilot designed for hydraulic steering, mechanical steering, & solenoid control
• Does not require a separate junction box, everything simply connects to the rear of the control head
• Does not require a separate junction box, everything simply connects to the rear of the control head
• SP-120C displays actual Compass heading & Selected Heading, along with Rudder Angle Displays simultaneously
• Compact 4.1 in x 4.1 in Splash proof Control head with large easy to read Color LCD LCD Display
• Extremely easy to select your desired headings, operate, and setup, with new user friendly software
• High performance 9 Axis Rate Gyro Compass provides the autopilot with excellent steering respons
• Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to enhance performance
• NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes
• NMEA-0183 Output of Compass heading at 10kHz for interface to MFD’s with Chart/Radar Overlay

• SI-TEX SP-120C Color LCD Autopilot Control Head
• NMEA Interface Cables
• 9 Axis Electronic Rate Gyro Compass
• Control Head Sun cover
• Product manual
• Mounting Screws
• Rudder Reference
• Type T Drive

Si-tex SP120C Autopilot with Virtual Feedback and No Drive

• The SI-TEX SP-120C is a new Autopilot designed for hydraulic steering, mechanical steering, & solenoid control
• Does not require a separate junction box, everything simply connects to the rear of the control head
• Does not require a separate junction box, everything simply connects to the rear of the control head
• SP-120C displays actual Compass heading & Selected Heading, along with Rudder Angle Displays simultaneously
• Compact 4.1 in x 4.1 in Splash proof Control head with large easy to read Color LCD LCD Display
• Extremely easy to select your desired headings, operate, and setup, with new user friendly software
• High performance 9 Axis Rate Gyro Compass provides the autopilot with excellent steering respons
• Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to enhance performance
• NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes
• NMEA-0183 Output of Compass heading at 10kHz for interface to MFD’s with Chart/Radar Overlay

• SI-TEX SP-120C Color LCD Autopilot Control Head
• NMEA Interface Cables
• 9 Axis Electronic Rate Gyro Compass
• Control Head Sun cover
• Product manual
• Mounting Screws

Si-tex SP120C Autopilot with Virtual Feedback and 9cui 12v Pump

• The SI-TEX SP-120C is a new Autopilot designed for hydraulic steering, mechanical steering, & solenoid control
• Does not require a separate junction box, everything simply connects to the rear of the control head
• Does not require a separate junction box, everything simply connects to the rear of the control head
• SP-120C displays actual Compass heading & Selected Heading, along with Rudder Angle Displays simultaneously
• Compact 4.1 in x 4.1 in Splash proof Control head with large easy to read Color LCD LCD Display
• Extremely easy to select your desired headings, operate, and setup, with new user friendly software
• High performance 9 Axis Rate Gyro Compass provides the autopilot with excellent steering respons
• Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to enhance performance
• NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes
• NMEA-0183 Output of Compass heading at 10kHz for interface to MFD’s with Chart/Radar Overlay

• SI-TEX SP-120C Color LCD Autopilot Control Head
• NMEA Interface Cables
• 9 Axis Electronic Rate Gyro Compass
• Control Head Sun cover
• Product manual
• Mounting Screws
• 9ci 12v Pump

Si-tex SP120 Autopilot with Rudder Feedback and Type T Drive

• The SI-TEX SP-120 is a new Autopilot designed for hydraulic steering, mechanical steering, & solenoid control
• Does not require a separate junction box, everything simply connects to the rear of the control head
• NMEA-0183 Output of Compass heading at 10kHz for interface to MFD’s with Chart/Radar Overlay
• SP-120 displays actual Compass heading & Selected Heading, along with Rudder Angle Displays simultaneously
• Compact 4.1 in x 4.1 in Splash proof Control head with large easy to read LCD Display
• Extremely easy to select your desired headings, operate, and setup, with new user friendly software
• High performance 9 Axis Rate Gyro Compass provides the autopilot with excellent steering respons
• Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to enhance performance
• NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes

• SI-TEX SP-120 LCD Autopilot Control Head
• NMEA Interface Cables
• 9 Axis Electronic Rate Gyro Compass
• Control Head Sun cover
• Product manual
• Mounting Screws
• Rudder Reference
• Type T Drive

Sitex SP38 Autopilot Corepack

Flux Gate Compass Rotary Feedback No Pump

• IST - Intelligent Steering Technology provides superior vessel steering capability
• ADAPTIVE steering for sea conditions and varying vessel speeds
• AUTO-SETUP - allows auto-drive detection, rudder response time, compass detection and calibration
• NMEA 2000, ETHERNET, and NMEA 0183 interface
• Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yacht’s
• WORK Mode suitable for Fishing Boats, Towboats and Workboats
• PRC- Proportional Rate Control feature provides gentle smooth steering response
• Multi-Station capability with security station lock
• SUNLIGHT viewable Color 5.7 in LCD display
• NAV Mode provide adaptive precise track steering
• ALC - Automatic Leeway Compensation for Drift, Tide & Wind
• Fully compatible with onboard instruments and steering systems
• Optional Z-Drive interface allows 360 Azimuth drive interface
• Optional Automatic Bow-Thruster Control for hands free Sabiki Fishing or station keeping
• Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Vietnamese, etc.
• Standard with Flush Mount kit, Optional Swivel mount bracket
• IP67 Waterproof - Control Head, TS4, NF4 and WS4
• RoHS & CE compliance for EMI and RFI immunity
• 9 level backlit LCD display
• LCD Display switches to Red Night Palette to protect Operators night vision
• Pre-defined parameter sets for full or semi-displacement, planning hulls, stern drives and sailboat applications
• Multiple steering parameters for Fast cruise, Slow cruise and Work modes
• Simple to use course knob with mechanical detent
• Multi-station capability with security station lock Automatic trim Adjustable yaw, turn rate and rudder settings PORT and STBD dodge buttons for collision avoidance
• Output for optional analog rudder angle indicator, up to 4 stations
• Fully compatible with onboard NMEA N2K instruments and most steering systems

The new SI-TEX SP-38 is a feature-packed professional autopilot ideal for a wide range of powerboats and commercial vessels up to about 150 feet LOA.

SI-TEX’s Intelligent Steering Technology (IST) learns vessel characteristics over time and fine-tunes itself for optimum performance. The SP-38 offers pre-defined operational parameter sets for full- or semi-displacement hulls, sterndrives and sailboats. It also offers a special Work Mode designed for commercial fishing boats, towboats and workboats. Proportional Rate Control (PRC) provides gentle and smooth steering response.

Other professional features include Nav Mode for adaptive and precise track steering and Automatic Leeway Compensation (ALC) that adjusts for the effects of drift, tide and wind. An optional bow-thruster interface is available for precision drift fishing and hands free station keeping.

Sitex SP38 Autopilot Corepack

Compass Pick-off Sensor Rotary Feedback No Pump

• IST - Intelligent Steering Technology provides superior vessel steering capability
• ADAPTIVE steering for sea conditions and varying vessel speeds
• AUTO-SETUP - allows auto-drive detection, rudder response time, compass detection and calibration
• NMEA 2000, ETHERNET, and NMEA 0183 interface
• Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yacht’s
• WORK Mode suitable for Fishing Boats, Towboats and Workboats
• PRC- Proportional Rate Control feature provides gentle smooth steering response
• Multi-Station capability with security station lock
• SUNLIGHT viewable Color 5.7 in LCD display
• NAV Mode provide adaptive precise track steering
• ALC - Automatic Leeway Compensation for Drift, Tide & Wind
• Fully compatible with onboard instruments and steering systems
• Optional Z-Drive interface allows 360 Azimuth drive interface
• Optional Automatic Bow-Thruster Control for hands free Sabiki Fishing or station keeping
• Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Vietnamese, etc.
• Standard with Flush Mount kit, Optional Swivel mount bracket
• IP67 Waterproof - Control Head, TS4, NF4 and WS4
• RoHS & CE compliance for EMI and RFI immunity
• 9 level backlit LCD display
• LCD Display switches to Red Night Palette to protect Operators night vision
• Pre-defined parameter sets for full or semi-displacement, planning hulls, stern drives and sailboat applications
• Multiple steering parameters for Fast cruise, Slow cruise and Work modes
• Simple to use course knob with mechanical detent
• Multi-station capability with security station lock Automatic trim Adjustable yaw, turn rate and rudder settings PORT and STBD dodge buttons for collision avoidance
• Output for optional analog rudder angle indicator, up to 4 stations
• Fully compatible with onboard NMEA N2K instruments and most steering systems

The new SI-TEX SP-38 is a feature-packed professional autopilot ideal for a wide range of powerboats and commercial vessels up to about 150 feet LOA.

SI-TEX’s Intelligent Steering Technology (IST) learns vessel characteristics over time and fine-tunes itself for optimum performance. The SP-38 offers pre-defined operational parameter sets for full- or semi-displacement hulls, sterndrives and sailboats. It also offers a special Work Mode designed for commercial fishing boats, towboats and workboats. Proportional Rate Control (PRC) provides gentle and smooth steering response.

Other professional features include Nav Mode for adaptive and precise track steering and Automatic Leeway Compensation (ALC) that adjusts for the effects of drift, tide and wind. An optional bow-thruster interface is available for precision drift fishing and hands free station keeping.
