Dual Row Marine Curved LED Light Bar - 42"

Specs

• Input Voltage: 10-30V DC
• Wattage: 240 W
• (80-3W CREE LEDs)
• Raw Lumens: 19200
• LUX at 10M: 780
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

• Housing Material: Die-Cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore®
• Lens Material: PC
• Mounting Bracket: Die-Cast Aluminum
• Hole Dimensions:

• Brackets Turned Inward – 41 inches
• Brackets Turned Outward – 43.5 inches
• Mounting Bolt Drill – 25 inches

• Height of Light Bar Itself: 3 inches
• Depth of Light Bar Itself: 3.5 inches
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation

• Operating Temperature: – 40 degrees C to +60 degrees C
• Current Consumption: 12 Amps at 13.8 Volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Dual Row Marine LED Curved Light Bar - 30"

Specs

• Input Voltage: 10-30V DC
• Wattage: 180 W
• (60-3W CREE LEDs)
• Raw Lumens: 14400
• LUX at 10M: 625
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

• Housing Material: Die-Cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore®
• Lens Material: PC
• Mounting Bracket: Die-Cast Aluminum
• Hole Dimensions:

• Brackets Turned Inward – 31 inches
• Brackets Turned Outward – 33.5 inches
• Mounting Bolt Drill – 25 inches

• Height of Light Bar Itself: 3 inches
• Depth of Light Bar Itself: 3.5 inches
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation

• Operating Temperature: – 40 degrees C to +60 degrees C
• Current Consumption: 9.5 Amps at 13.8 Volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Dual Row Marine LED Light Light Bar - 14"

SPECS

• Input Voltage: 10-30V DC
• Wattage: 72W (24-3W CREE LEDs)
• Raw Lumens: 5400
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90deg)/Spot(8deg)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Hole Dimensions: Brackets turned inward – 13.50in
• Brackets turned outward – 14.75in
• Mounting Bolt Drill – .25in
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: 3.7amps at 13.8 volts
• IP Rating: IP68
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Dual Row Marine LED Light Bar - 8"

SPECS

• Input Voltage: 10-30V DC
• Wattage: 36W (12-3W CREE LEDs)
• Raw Lumens: 2880
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90deg)/Spot(8deg)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Hole Dimensions: Brackets turned inward – 7.25in
• Brackets turned outward – 9.5in
• Mounting Bolt Drill – .25in
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: 1.9 amps at 13.8 volts
• IP Rating: IP68
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Marine Auxiliary Accent Lighting Pod - 1.5" x 3" - White/Blue

SPECS

• Input Voltage: 10-30V DC
• Blue Color: (3-3W CREE LEDs)
• Wattage: 9W
• Raw Lumens: 1200/720
• Beam Pattern: 120deg Flood

CONSTRUCTION

• Housing Material: White Die-cast Aluminum Housing
• Lens Material: PC
• Mounting: Two Rubber Bases Included
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: .2 amps at 13.8 volts
• IP Rating: IP68

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Accent Light Cover

This Accent Lighting Cover fits over accent lights (HE-ML1 and assorted colors – HE-4MLRGBK/ HE-8MLRGBK ) and can be positioned to divert light down for accent lighting or can be used to diffuse the strength of the lights when direct lighting is not needed.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

RGB Marine Accent Light - 1.5" x 3" - White/RGB

Whether you are fishing at night – cruising trails on your ATV – or want more lighting in your truck this 1.5 × 3 Inch RGB LED Accent Light provides endless RGB color options. Our accent lights can be used individually or combined with other accent lights to provide even more light. The white die-cast aluminum housing with a polycarbonate cover is virtually indestructible. With a 10 foot long cable you will have no problem reaching the area you need illuminated. Longer applications make use the waterproof 10 foot extension (HE-EXTRGB). This accent light provides 720 raw lumens from three 3 watt Cree LEDs and has a 120 degree beam pattern. This RGB accent light plugs into the Heise control box (HE-CBRGB).

Specifications:

• Input Voltage: 10-30V DC (3-3W CREE LEDs)
• Wattage: 9W
• Raw Lumens: 720
• Beam Pattern: 120 Degree Flood

Construction:

• Housing Material: White Die-Cast Aluminum Housing
• Housing Color: White
• Lens Material: PC
• Mounting: Cutout Template and Gasket Included
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40 degrees F to +140 degrees F
• Current Consumption: 0.2 Amps at 13.8 Volts
• IP Rating: IP68

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Marine Auxiliary Accent Lighting Pod - 1.5" x 3" - White

SPECS

• Input Voltage: 10-30V DC
• White: (3-5W CREE LEDs)
• Wattage: 15W
• Raw Lumens: 1200/720
• Beam Pattern: 120deg Flood

CONSTRUCTION

• Housing Material: White Die-cast Aluminum Housing
• Lens Material: PC
• Mounting: Two Rubber Bases Included
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: .2 amps at 13.8 volts
• IP Rating: IP68

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

RGB Accent Light Kit - 8 Pack

These small but powerful auxiliary accent lighting pods are ideal for custom lighting in even the most rugged vehicles. Torture tested with a virtually unbreakable polycarbonate lens and IP68 rated. They can get hit – shaken – muddy or wet – without fear of failure. Whether you are fishing at night – cruising trails on your ATV or want more lighting in your truck – this 1.5 × 3 Inch RGB LED Accent Light provides endless RGB color options.

Change colors with a swipe of your finger. The lights are designed to be used with the Heise control box (HE-CBRGB) that turns a smartphone or tablet into a remote control via the Heise RGB App – available for both Android and iOS devices. This free mobile app allows the user to control the lights by selecting colors through a color wheel – choosing pre-programmed flash patterns and colors – an option to flash colors with music – and even has a timer to select when to turn on and off a specific pattern or color. Up to eight accent lights can be added per control box.

Includes CONTROL BOX HE-CBRGB

Specifications:

• Input Voltage: 10-30V DC
• LEDs: (8 Pods – (3) 3W CREE LEDs per Pod)
• Wattage: 9W Total per Pod
• Raw Lumens: 720
• Beam Pattern: 120 Degree Flood

Construction:

• Housing Material: White Die-Cast Aluminum Housing
• Lens Material: PC
• Mounting: Cutout Template and Gasket Included
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40 degrees C to +60 degrees C
• IP Rating: IP68

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

RBG Accent Light Kit - 4 Pack

These small but powerful auxiliary accent lighting pods are ideal for custom lighting in even the most rugged vehicles. Torture tested with a virtually unbreakable polycarbonate lens and IP68 rated. They can get hit – shaken – muddy or wet – without fear of failure. Whether you are fishing at night – cruising trails on your ATV or want more lighting in your truck – this 1.5 × 3 Inch RGB LED Accent Light provides endless RGB color options.

Change colors with a swipe of your finger. The lights are designed to be used with the Heise control box (HE-CBRGB) that turns a smartphone or tablet into a remote control via the Heise RGB App – available for both Android and iOS devices. This free mobile app allows the user to control the lights by selecting colors through a color wheel – choosing pre-programmed flash patterns and colors – an option to flash colors with music – and even has a timer to select when to turn on and off a specific pattern or color. Up to eight accent lights can be added per control box.

Includes CONTROL BOX HE-CBRGB

Specifications:

• Input Voltage: 10-30V DC
• LEDs: (4 Pods – (3) 3W CREE LEDs per Pod)
• Wattage: 9W Total per Pod
• Raw Lumens: 720
• Beam Pattern: 120 Degree Flood

Construction:

• Housing Material: White Die-Cast Aluminum Housing
• Lens Material: PC
• Mounting: Cutout Template and Gasket Included
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40 degrees C to +60 degrees C
• IP Rating: IP68

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

6 LED Marine Cube Light - Flush Mount - 3"

SPECS

• Input Voltage: 10-30V DC
• Wattage: 18W (6-3W CREE LEDs)
• Raw Lumens: 1440
• Color Temperature: 6000K
• Beam Pattern: 90deg Flood

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Lens Material: PC
• Mounting Bracket: Flush Mount
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316 and includes a gasket and cut out template

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: 1.2 amps at
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

4 LED Marine Cube Light - Flush Mount - 3"

SPECS

• Input Voltage: 10-30V DC
• Wattage: 12W (4-3W CREE LEDs)
• Raw Lumens: 960
• Color Temperature: 6000K
• Beam Pattern: 90deg Flood

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Lens Material: PC
• Mounting Bracket: Flush Mount
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316 and includes a gasket and cut out template

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: .9 amps at 13.8 volts per cube
• IP Rating: IP68
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

RGB LED Controller Waterproof

Features:

• 10 SPEEDS – 20 MODES
• Waterproof RGB LED Controller via smartphone APP
• Use RGB MPS APP to control your infinite colors – 10 speeds – 20 dynamic modes
• LEDs flash to your music via your smartphone Bluetooth feature
• Operational voltage: 12-24V DC
• Maximum Current: 10a
• APP operating range 60 feet (20m) unobstructed
• Outputs: (4) Micro DIN Female connectors
• Fused power and ground wires for easy connection
• Use with MPS-RGBWWS4 (sold separately)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Sound Activated RGB Controller with IR Remote

Features:

• Sound activated controller with IR remote
• You can connect up to three HE-5MRGB-1 lights to the controller
• Sensitivity adjustment

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

RGB 8 Output Control Box

This 8 Output Control Box for Heise RGB accent lights (HE-ML1RGB/ HE-TL1RGB) is waterproof and can connect up to eight accent lights. The control box is sealed so that it can be mounted in an engine compartment without fear of failure and features a simple two wire connection. With infinite colors and multiple flash patterns, these lights can be controlled with the Heise RGB app found for iOS and Android.

Want to purchase the control box and the lights as a complete kit? This item is included with the four and eight pack Heise RGB Accent Light Kits under these part numbers:

• HE-4MLRGBK (4 Pack, White Light Pod Housing)
• HE-4TLRGBK (4 Pack, Black Light Pod Housing)
• HE-8MLRGBK (8 Pack, White Light Pod Housing)
• HE-8TLRGBK (8 Pack, Black Light Pod Housing)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Infinite Series 8" RGB Backlite Dualrow Bar - 12 LED

The Infinite Series offers pure white light with 16 million selectable colors as a backlight, controlled by a mobile app. The military breather port allows moisture to escape and the virtually unbreakable polycarbonate lens will withstand the toughest environments. The backlit RGB lights use the same controller as Heise’s popular RGB accent lights, allowing the Infinite Series to be synchronized and controlled using a single mobile app. The HE-CBRGB controller is sold separately and required for RGB functionality.

Specifications:

• Input Voltage: 10-30V DC
• Wattage: 18W
• Raw Lumens: 2280
• LUX @ 10M: 235
• Color Temperature: 6000K
• Beam Pattern: Spot(8°)

Construction:

• Housing Material: Die–cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Hole Dimensions: Brackets turned inward - 7.25"
• Brackets turned outward - 9.5"
• Mounting Bolt Drill - .25"
• Height of Light Bar Itself: 4.8"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40°C to +60°C
• Current Consumption: 1.3 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Infinite Series 14" RGB Backlite Dualrow Bar - 24 LED

The Infinite Series offers pure white light with 16 million selectable colors as a backlight, controlled by a mobile app. The military breather port allows moisture to escape and the virtually unbreakable polycarbonate lens will withstand the toughest environments. The backlit RGB lights use the same controller as Heise’s popular RGB accent lights, allowing the Infinite Series to be synchronized and controlled using a single mobile app. The HE-CBRGB controller is sold separately and required for RGB functionality.

Specifications:

• Input Voltage: 10-30V DC
• Wattage: 36W
• Raw Lumens: 4560
• LUX @ 10M: 660
• Color Temperature: 6000K
• Beam Pattern: Spot(8°)

Construction:

• Housing Material: Die–cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Hole Dimensions: Brackets turned inward - 13.25"
• Brackets turned outward - 15.5"
• Mounting Bolt Drill - .25"
• Height of Light Bar Itself: 4.8"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40°C to +60°C
• Current Consumption: 2.6 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Infinite Series 22" RGB Backlite Dualrow Bar - 24 LED

The Infinite Series offers pure white light with 16 million selectable colors as a backlight, controlled by a mobile app. The military breather port allows moisture to escape and the virtually unbreakable polycarbonate lens will withstand the toughest environments. The backlit RGB lights use the same controller as Heise’s popular RGB accent lights, allowing the Infinite Series to be synchronized and controlled using a single mobile app. The HE-CBRGB controller is sold separately and required for RGB functionality.

Specifications:

• Input Voltage: 10-30V DC
• Wattage: 60W
• Raw Lumens: 7600
• LUX @ 10M: 1150
• Color Temperature: 6000K
• Beam Pattern: Spot(8°)

Construction:

• Housing Material: Die–cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Hole Dimensions: Brackets turned inward - 21.25"
• Brackets turned outward - 23.5"
• Mounting Bolt Drill - .25"
• Height of Light Bar Itself: 4.8"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40°C to +60°C
• Current Consumption: 4.34 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Infinite Series 40" RGB Backlite Dualrow Bar - 24 LED

The Infinite Series offers pure white light with 16 million selectable colors as a backlight, controlled by a mobile app. The military breather port allows moisture to escape and the virtually unbreakable polycarbonate lens will withstand the toughest environments. The backlit RGB lights use the same controller as Heise’s popular RGB accent lights, allowing the Infinite Series to be synchronized and controlled using a single mobile app. The HE-CBRGB controller is sold separately and required for RGB functionality.

Specifications:

• Input Voltage: 10-30V DC
• Wattage: 114W
• Raw Lumens: 14440
• LUX @ 10M: 1780
• Color Temperature: 6000K
• Beam Pattern: Spot(8°)

Construction:

• Housing Material: Die–cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Hole Dimensions: Brackets turned inward - 39.25"
• Brackets turned outward - 41.5"
• Mounting Bolt Drill - .25"
• Height of Light Bar Itself: 4.8"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40°C to +60°C
• Current Consumption: 9.5 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Single Row Slimline LED Light Bar - 50-3/4"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 117W (39–3W OSRAM LEDs)
• Raw Lumens: 9360
• LUX @ 10M: 3250
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Mounting: Side and Bottom
• Hole Dimensions:

• Brackets turned inward – 50.50"
• Brackets turned outward – 52.50"
• Mounting Bolt Drill – .25"

• Height of Light Bar Itself: 2"
• Depth of Light Bar Itself: 2"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to +60°C
• Current Consumption: 6.5 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Single Row Slimline LED Light Bar - 39-1/4"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 90W (30–3W OSRAM LEDs)
• Raw Lumens: 7200
• LUX @ 10M: 2920
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Mounting: Side and Bottom
• Hole Dimensions:

• Brackets turned inward – 39"
• Brackets turned outward – 41"
• Mounting Bolt Drill – .25"

• Height of Light Bar Itself: 2"
• Depth of Light Bar Itself: 2"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to +60°C
• Current Consumption: 4.9 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Single Row Slimline LED Light Bar - 32"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 72W (24–3W OSRAM LEDs)
• Raw Lumens: 5760
• LUX @ 10M: 2200
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Mounting: Side and Bottom
• Hole Dimensions:

• Brackets turned inward – 31.75"
• Brackets turned outward – 33.75"
• Mounting Bolt Drill – .25"

• Height of Light Bar Itself: 2"
• Depth of Light Bar Itself: 2"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to +60°C
• Current Consumption: 4 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Single Row Slimline LED Light Bar - 20-1/4"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 45W (15–3W OSRAM LEDs)
• Raw Lumens: 3600
• LUX @ 10M: 1280
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Mounting: Side and Bottom
• Hole Dimensions:

• Brackets turned inward – 20"
• Brackets turned outward – 22"
• Mounting Bolt Drill – .25"

• Height of Light Bar Itself: 2"
• Depth of Light Bar Itself: 2"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to +60°C
• Current Consumption: 2.4 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Single Row Slimline LED Light Bar - 9-1/4"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 18W (6–3W OSRAM LEDs)
• Raw Lumens: 1440
• LUX @ 10M: 22
• Color Temperature: 6000K
• Beam Pattern: 90° Flood

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Side and Bottom Mounting
• Mounting: Side and Bottom
• Hole Dimensions:

• Brackets turned inward – 9"
• Brackets turned outward – 11"
• Mounting Bolt Drill – .25"

• Height of Light Bar Itself: 2"
• Depth of Light Bar Itself: 2"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to +60°C
• Current Consumption: .9 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Single Row Slimline LED Light Bar - 5-1/2"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 9W (3–3W OSRAM LEDs)
• Raw Lumens: 720
• LUX @ 10M: 10
• Color Temperature: 6000K
• Beam Pattern: 90° Flood

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Mounting: Side and Bottom
• Hole Dimensions:

• Brackets turned inward – 5.25"
• Brackets turned outward – 7.25"
• Mounting Bolt Drill – .25"

• Height of Light Bar Itself: 2"
• Depth of Light Bar Itself: 2"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to +60°C
• Current Consumption: .4 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Dual Row Blackout LED Light Bar - 22"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 120W (40–3W CREE LEDs)
• Raw Lumens: 9600
• LUX @ 10M: 655
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Die–cast Aluminum Housing
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Hole Dimensions:

• Brackets turned inward – 21.3125"
• Brackets turned outward – 23.75"
• Mounting Bolt Drill – .25"

• Height of Light Bar Itself: 3"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to +60°C
• Current Consumption: 6.3 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Dual Row LED Light Bar - 22"

SPECS

• Input Voltage: 10-30V DC
• Power Consumption: 120W
• (40-3W CREE LEDs)
• Raw Lumens: 9600
• LUX @ 10M: 655
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Length of Bar without Mounting Brackets: 22.12"
• Hole Dimensions:

• Brackets turned inward - 21.50"
• Brackets turned outward - 23.75"
• Mounting Bolt Drill - .25"

• Height of Light Bar Itself: 3"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40°C to +60°C
• Current Consumption: 6.3 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Triple Row LED Light Bar - 50"

Specifications:

• Input Voltage: 10–30V DC
• Wattage: 300W (100–3W OSRAM LEDs)
• Raw Lumens: 24000
• LUX @ 10M: 6500
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

Construction:

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die-cast aluminum
• Hole Dimensions: Brackets turned outward – 53.125"
• Mounting Bolt Drill – .25"
• Height of Light Bar Itself: 3.50"
• Depth of Light Bar Itself: 3.25"
• Length of Bar w/o Mounting Brackets: 50.50"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

Operation:

• Operating Temperature: –40°C to +60°C
• Current Consumption: 18 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Dual Row LED Light Bar - 14"

SPECS

• Input Voltage: 10-30V DC
• Power Consumption: 72W
• (24-3W CREE LEDs)
• Raw Lumens: 5760
• LUX @ 10M: 466
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Length of Bar without Mounting Brackets: 14"
• Hole Dimensions:

• Brackets turned inward - 13.50"
• Brackets turned outward - 14.75"
• Mounting Bolt Drill - .25"

• Height of Light Bar Itself: 3"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40°C to +60°C
• Current Consumption: 3.7 amps @ 13.8 volts
• IP Rating: IP68
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

3" 4 LED Cube Light

Specifications:

• Wattage: 13W
• Lumens: 1080
• Lux @ 10M: 411
• Color Temperature: 6000K
• Beam Pattern: Spot (8°)

Construction:

• Housing Material: Die-Cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Stainless Steel
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40°C to +60°C
• Current Consumption @ 13.8V: 0.9 A
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

3" 4 LED Cube Light - 2-Pack

Specifications:

• Wattage: 13W
• Lumens: 1080
• Lux @ 10M: 411
• Color Temperature: 6000K
• Beam Pattern: Spot (8°)

Construction:

• Housing Material: Die-Cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Stainless Steel
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40°C to +60°C
• Current Consumption @ 13.8V: 0.9 A
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blackout LED Cube Light - Flush Mount - 3"

SPECS

• Input Voltage- 10-30V DC
• Wattage- 12W
• (4-3W CREE LED)
• Raw Lumens- 960
• LUX at 10M- 17
• Color Temperature- 6000K
• Beam Pattern- 90 degree Flood

CONSTRUCTION

• Housing Material- Die-cast Aluminum Housing
• Housing Color- Black
• Lens Material- PC
• Mounting Bracket- Flush Mount
• Electronics- Integrated-Epoxy Encapsulated
• Hardware- Stainless 316 and includes a gasket and cut out template

OPERATION

• Operating Temperature- -40 degree C to +60 degree C
• Current Consumption- .9 amps @ 13.8 volts
• IP Rating- IP68
• Protections- Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

9006 LED Headlight Kit - Single Beam

HEISE LED replacement headlights are designed to replace weaker, factory bulbs with brighter, low current consuming LED bulbs.  These headlight kits are extremely bright, providing the additional light needed on dark nights.

Each kit has a pair of 25 watt LED bulbs.  The voltage and current monitoring circuits are inside the compact radial heatsink housing and protected from the elements.  Installation is easy, even in tight locations!

Heise headlights come in 21 different model sizes to fit an array of headlight applications and are the perfect upgrade for drivers wanting more out of their headlights.

Features:

• 6000 Lumens
• 25 Watts per bulb
• Compact radial heatsink for better heat dissipation – less depth of space and easy installs
• Voltage and current monitoring circuits are inside the compact radial heatsink housing and protected from the elements
• 6500K color spectrum with 3000K (golden yellow) and 8000K (light blue tint) films
• Rotatable bulb can adjust the beam pattern for the vehicle
• IP67 Rated
• Not for use on public roads

*Sold as a Pair

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Pigtail Adapter f/RGB Accent Lighting Pods

This Pigtail Adapter is designed to wire Heise RGB accent light pods (HE-TL1RGB/HE-ML1RGB) into any four wire positive anode RGB controller (HE-RGBSAC-1) without cutting the waterproof connection.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

RGB Accent Lighting Kit - 8 Pack

These small but powerful auxiliary accent lighting pods are ideal for custom lighting in even the most rugged vehicles. Torture tested with a virtually unbreakable polycarbonate lens and IP68 rated. They can get hit – shaken – muddy or wet – without fear of failure. Whether you are fishing at night – cruising trails on your ATV or want more lighting in your truck – this 1.5 × 3 Inch RGB LED Accent Light provides endless RGB color options.

Change colors with a swipe of your finger. The lights are designed to be used with the Heise control box (HE-CBRGB) that turns a smartphone or tablet into a remote control via the Heise RGB App – available for both Android and iOS devices. This free mobile app allows the user to control the lights by selecting colors through a color wheel – choosing pre-programmed flash patterns and colors – an option to flash colors with music – and even has a timer to select when to turn on and off a specific pattern or color. Up to eight accent lights can be added per control box.

Includes CONTROL BOX HE-CBRGB

Specifications:

• Input Voltage: 10-30V DC
• LEDs: (8 Pods – (3) 3W CREE LEDs per Pod)
• Wattage: 9W Total per Pod
• Raw Lumens: 720
• Beam Pattern: 120 Degree Flood

Construction:

• Housing Material: Black Die-Cast Aluminum Housing
• Lens Material: PC
• Mounting: Cutout Template and Gasket Included
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40 degrees C to +60 degrees C
• IP Rating: IP68

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

RGB Accent Lighting Kit - 4 Pack

These small but powerful auxiliary accent lighting pods are ideal for custom lighting in even the most rugged vehicles. Torture tested with a virtually unbreakable polycarbonate lens and IP68 rated. They can get hit – shaken – muddy or wet – without fear of failure. Whether you are fishing at night – cruising trails on your ATV or want more lighting in your truck – this 1.5 × 3 Inch RGB LED Accent Light provides endless RGB color options.

Change colors with a swipe of your finger. The lights are designed to be used with the Heise control box (HE-CBRGB) that turns a smartphone or tablet into a remote control via the Heise RGB App – available for both Android and iOS devices. This free mobile app allows the user to control the lights by selecting colors through a color wheel – choosing pre-programmed flash patterns and colors – an option to flash colors with music – and even has a timer to select when to turn on and off a specific pattern or color. Up to eight accent lights can be added per control box.

Includes CONTROL BOX HE-CBRGB

Specifications:

• Input Voltage: 10-30V DC
• LEDs: (4 Pods – (3) 3W CREE LEDs per Pod)
• Wattage: 9W Total per Pod
• Raw Lumens: 720
• Beam Pattern: 120 Degree Flood

Construction:

• Housing Material: Black Die-Cast Aluminum Housing
• Lens Material: PC
• Mounting: Cutout Template and Gasket Included
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40 degrees C to +60 degrees C
• IP Rating: IP68

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Accent Lighting Cover

This Accent Lighting Cover fits over our accent lights (HE-TL1 and assorted colors – HE-4TLRGBK/ HE-8TLRGBK ) and can be positioned to divert light down for accent lighting or can be used to diffuse the strength of the lights when direct lighting is not needed.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Auxiliary Accent Lighting Pod - 1.5" x 3" - Black/Red

SPECS

• Input Voltage: 10-30V DC
• Red Color: (3-3W CREE LEDs)
• Wattage: 9W
• Raw Lumens: 1200/720
• Beam Pattern: 120deg Flood

CONSTRUCTION

• Housing Material: Black Die-cast Aluminum Housing
• Lens Material: PC
• Mounting: Two Rubber Bases Included
• Hardware: Black Screws

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: .2 amps at 13.8 volts
• IP Rating: IP68

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Auxiliary Accent Lighting Pod - 1.5" x 3" - Black/Green

SPECS

• Input Voltage: 10-30V DC
• Green Color: (3-3W CREE LEDs)
• Wattage: 9W
• Raw Lumens: 1200/720
• Beam Pattern: 120deg Flood

CONSTRUCTION

• Housing Material: Black Die-cast Aluminum Housing
• Lens Material: PC
• Mounting: Two Rubber Bases Included
• Hardware: Black Screws

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: .2 amps at 13.8 volts
• IP Rating: IP68

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Auxiliary Accent Lighting Pod - 1.5" x 3" - Black/Blue

SPECS

• Input Voltage: 10-30V DC
• Blue Color: (3-3W CREE LEDs)
• Wattage: 9W
• Raw Lumens: 1200/720
• Beam Pattern: 120deg Flood

CONSTRUCTION

• Housing Material: Black Die-cast Aluminum Housing
• Lens Material: PC
• Mounting: Two Rubber Bases Included
• Hardware: Black Screws

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: .2 amps at 13.8 volts
• IP Rating: IP68

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Rectangle Work Light - 3.625" x 2"

SPECS

• Input Voltage: 10-30V DC
• Wattage: 6.6W (33-.2W CREE LEDs)
• Raw Lumens: 726
• Color Temperature: 6000K
• Beam Pattern: 120deg Flood

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Design: Unique Waffle
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Hole Dimensions: Mounting Bolt Drill – .25in
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Current Consumption: .3 amps at 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Round LED Driving Light - 3.5"

SPECS

• Input Voltage: 10-30V DC
• Wattage: 18W (6-3W OSRAM LEDs)
• Raw Lumens: 1440
• Color Temperature: 6000K
• Beam Pattern: 8º Spot

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Black Powder Coated Steel
• Hole Dimensions: Mounting Bolt Drill – .25in
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40º C to +60º C
• Current Consumption: .9 amps at 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity
• Optional black cover HE-DLC35 available

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

6 LED Single Row Driving Light - Flush Mount

SPECS

• Input Voltage: 10-30V DC
• Wattage: 18W (6-3W OSRAM LEDs)
• Raw Lumens: 1440
• Color Temperature: 6000K
• Beam Pattern: 25deg Spot

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Stainless Steel
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316 and includes a gasket and a cut-out template

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: .9 amps at 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

6 LED Single Row Driving Light

SPECS

• Input Voltage: 10-30V DC
• Wattage: 18W (6-3W OSRAM LEDs)
• Raw Lumens: 1440
• Color Temperature: 6000K
• Beam Pattern: 25deg Spot

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Black Powder Coated Steel
• Hole Dimensions: Mounting Bolt Drill – .25in
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: .9 amps at 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

1.5" x 3" Auxiliary Accent Lighting Pod - White

SPECS

• Input Voltage: 10–30V DC
• White: (3–5W CREE LEDs)
• Wattage: 15W
• Raw Lumens: 1200/720
• Beam Pattern: 120° Flood

CONSTRUCTION

• Housing Material: Black Die–cast Aluminum Housing
• Lens Material: PC
• Mounting: Two Rubber Bases Included
• Hardware: Black Screws

OPERATION

• Operating Temperature: –40°C to +60°C
• Current Consumption: .2 amps @ 13.8 volts
• IP Rating: IP68

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

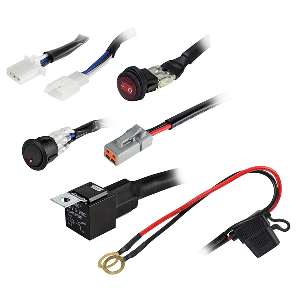

1 Lamp DR Wiring Harness & Switch Kit

Universal Wiring Harness and Switch kit, (for 1 Lamp- DT connector), Universal Plug and Play Wiring Harness, with On-Off Rocker Switch, 12V DC Relay, 30A Fuse, With 2-pin DT connector for 1 Lamp only, With Waterproof Fuse Holder, Set includes Wiring Harness and Switch, Easy Installation, Use with one Heise Light Bar or Cube 22 inches or, smaller.

Features:

• Universal Wiring Harness & Switch kit (for 1 Lamp, DT connector)
• Universal Plug and Play Wiring Harness with On/Off Rocker Switch
• 12V DC Relay
• 30A Fuse
• With 2-pin DT connectors for 2 Lamps
• With Waterproof Fuse Holder
• Set includes Wiring Harness & Switch
• Easy Installation
• Use with one Heise light bar 22 inches or smaller or any cube

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Rocker Switch - Illuminated Blue Round - 5-Pack

Features:

• Same switch as used in the HEISE relay harnesses
• 20 Amp
• Rubber cover helps protect switch from dust and water intrusion
• Color: Blue
• 5-Pack

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Replacement Lightbar Mounting Brackets & Hardware

Replacement mounting brackets and hardware for DR – DRC – BDR – BDRC – SR – and SRC Series HEISE light bars.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Y-Adapter Harness Kit for HE-WRRK

From the leader in the lighting industry.  This universal wire harness is for DT connected lights and wire harnesses and allows a full-length installation.  Works in conjunction with HE-WRRK.

Fully loaded and ready to be installed with two (2) Heise light bars (22" or smaller) and Heise cube lights.

Specifications:

• 9’ in Length
• Black in color

In the Box:

• One (1) Y Adapter
• One (1) Extension

*Sold as an Individual

2-Lamp Wiring Harness & Switch Kit

From the leader in the lighting industry.  This universal wire harness is for DT connected lights and wire harnesses and allows a full-length installation.  Fully loaded and ready to be installed with two (2) Heise light bars (22" or smaller) and Heise cube lights.

Specifications:

• 9’ in Length
• Black in color

In the Box:

• 12v DC Relay
• 30 amp Fuse
• Two (2) - two (2) Pin DT Connectors for two (2) Lamps
• Waterproof Fuse Holder
• On/Off Rocker Switch

*Sold as an Individual

DT Pigtails with Wires - 10-Pack

From the leader in the lighting industry.  The DT Pigtail with wire is designed to be wired to HEISE LED lights that do not come equipped with a plug. The DT Pigtail in combination with the DT Wiring Harness & Switch Kit (HE-SLWH1) or the Universal Wiring Harness & Switch Kit (HE-DLWH1) provides a universal wiring solution for wire runs of up to 10’ and lights up to 150 watts.

Specifications:

• 12" in Length
• Black in color

*Sold in a 10 Pack

H10 Replacement LED Headlight Kit - Single Beam

HEISE LED replacement headlights are designed to replace weaker, factory bulbs with brighter, low current consuming LED bulbs.  These headlight kits are extremely bright, providing the additional light needed on dark nights.

Each kit has a pair of 25 watt LED bulbs.  The voltage and current monitoring circuits are inside the compact radial heatsink housing and protected from the elements.  Installation is easy, even in tight locations!

Heise headlights come in 21 different model sizes to fit an array of headlight applications and are the perfect upgrade for drivers wanting more out of their headlights.

Features:

• 6000 Lumens
• 25 Watts per bulb
• Voltage: 9-32V DC
• Compact radial heatsink for better heat dissipation – less depth of space and easy installs
• Voltage and current monitoring circuits are inside the compact radial heatsink housing and protected from the elements
• 6500K color spectrum with 3000K (golden yellow) and 8000K (light blue tint) films
• Rotatable bulb can adjust the beam pattern for the vehicle
• IP67 Rated
• Not for use on public roads

*Sold as a Pair

ATP Wiring Harness & Switch Kit - 1 Lamp Universal

Features:

• 9 ft lead for light bar connector(s)
• Universal wiring harness and switch kit (for 1 lamp, ATP connector)
• Universal plug-n-play wiring harness with on/off rocker switch
• 12V DC relay
• 30A fuse
• Use with 1 Heise light 160 watts or more

7" Edgeless Driving Light Spot

Form and function. Heise provides a powerful spotlight in a clean, edgeless frame with no screws on the front face for a sleek appearance that doesn’t compromise performance. This heavy-duty 7” round driving light is designed for off-road, rugged, and dark night conditions to illuminate your path for better visibility.

Features:

• Input Voltage: 12-24V Dc
• Color Temperature: 6000K
• Beam Pattern: 10o Spot
• Housing Material: Die-Cast Aluminum
• Color: Black
• Lens Material: Polycarbonate
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316
• Operating Temperature: -40oF To +140oF
• Protection: Reverse Polarity
• Limited Lifetime Warranty

Specifications:

• Size: 7”
• 16 LEDs
• Wattage: 80W
• Raw Lumens: 6,720lm
• Lux at 10m: 1075
• Current Consumption @ 13.8V: 5.3A
• IP Rating: IP68 & IP69K

Dual Row Blackout LED Lightbar - 22"

An improved design makes the latest generation of Heise Blackout Series LED lights a versatile lighting solution for different vehicles and uses. Function meets style with refined frames and cleaner lines for a sleek yet minimalistic look. The upgraded optics have changed from a direct to an indirect placement allowing more control of the location and pattern of the beam. This allows the lights to be tailored to the vehicle, its entire lighting system, and for the driver’s lighting coverage needs.

The hybrid 90o flood and 8o spot beam pattern combination deliver the best of both worlds with intense spotlights in the center flanked by widebeam lights on each side. Heise’s protective vent port allows for internal moisture to escape and prevents any external moisture from entering the lightbar housing.

Features:

• Input Voltage: 10-30V Dc
• Color Temperature: 5700K
• Beam Pattern: Combo 90° Flood / 8° Spot
• Housing Material: Die-Cast Aluminum
• Color: Black
• Membrane: Protective Vent Port
• Lens Material: Polycarbonate
• Mounting Bolt Drill:0.25”
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316
• Operating Temperature: -40°F To +140°F
• Protection: Reverse Polarity
• Mounting: Side & Rear
• Limited Lifetime Warranty

Specifications:

• Length: 22”
• Wattage: 200W
• Raw Lumens: 16,800lm
• Lux at 10m: 6461
• Current Consumption @ 13.8V: 6.7A
• IP Rating: IP67

Vehicle Applications:

• Universal

Dual Row Blackout LED Lightbar - 14"

An improved design makes the latest generation of Heise Blackout Series LED lights a versatile lighting solution for different vehicles and uses. Function meets style with refined frames and cleaner lines for a sleek yet minimalistic look. The upgraded optics have changed from a direct to an indirect placement allowing more control of the location and pattern of the beam. This allows the lights to be tailored to the vehicle, its entire lighting system, and for the driver’s lighting coverage needs.

The hybrid 90° flood and 8° spot beam pattern combination deliver the best of both worlds with intense spotlights in the center flanked by widebeam lights on each side. Heise’s protective vent port allows for internal moisture to escape and prevents any external moisture from entering the lightbar housing.

Features:

• Input Voltage: 10-30V Dc
• Color Temperature: 5700K
• Beam Pattern: Combo: 90° Flood / 8° Spot
• Housing Material: Die-Cast Aluminum
• Color: Black
• Membrane: Protective Vent Port
• Lens Material: Polycarbonate
• Mounting Bolt Drill: 0.25”
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316
• Operating Temperature: -40°F To +140°F
• Protection: Reverse Polarity
• Mounting: Side & Rear
• Limited Lifetime Warranty

Specifications:

• Length: 14”
• Wattage: 120W
• Raw Lumens: 10,080lm
• Lux at 10m: 3666
• Current Consumption @ 13.8V: 3.8A
• IP Rating: IP67

Vehicle Applications:

• Universal

32" Blackout Dual Row - 60 LED - Lightbar

Heise Blackout Series LED lights are a versatile lighting solution for different vehicles and use. Function meets style with refined frames and cleaner lines for a sleek yet minimalistic look. The upgraded optics have changed from a direct to an indirect placement allowing more control of the location and pattern of the beam. This allows the lights to be tailored to the vehicle, its entire lighting system, and for the driver’s lighting coverage needs.

The hybrid 90° flood and 8° spot beam pattern combination deliver the best of both worlds with intense spotlights in the center flanked by wide beam lights on each side. Heise’s protective vent port allows for internal moisture to escape and prevents any external moisture from entering the light bar housing.

Features:

• Input Voltage: 10-30V Dc
• Color Temperature: 5700K
• Beam Pattern: Combo 90° Flood / 8° Spot
• Housing Material: Die-Cast Aluminum
• Color: Black
• Membrane: Protective Vent Port
• Lens Material: Polycarbonate
• Mounting Bolt Drill: 0.25”
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316
• Operating Temperature: -40°F To +140°F
• Protection: Reverse Polarity
• Mounting: Side & Rear
• Limited Lifetime Warranty

Specifications:

• Length: 32”
• Wattage: 300W
• Raw Lumens: 25,200lm
• Lux at 10m: 8624
• Current Consumption @ 13.8V: 9.3A
• IP Rating: IP67

Vehicle Applications:

• Universal

42" Blackout Dual Row - 80 LED - Lightbar

Heise Blackout Series LED lights are a versatile lighting solution for different vehicles and use. Function meets style with refined frames and cleaner lines for a sleek yet minimalistic look. The upgraded optics have changed from a direct to an indirect placement allowing more control of the location and pattern of the beam. This allows the lights to be tailored to the vehicle, its entire lighting system, and for the driver’s lighting coverage needs.

The hybrid 90° flood and 8° spot beam pattern combination deliver the best of both worlds with intense spotlights in the center flanked by wide beam lights on each side. Heise’s protective vent port allows for internal moisture to escape and prevents any external moisture from entering the light bar housing.

Features:

• Input Voltage: 10-30V Dc
• Color Temperature: 5700K
• Beam Pattern: Combo 90° Flood / 8° Spot
• Housing Material: Die-Cast Aluminum
• Color: Black
• Membrane: Protective Vent Port
• Lens Material: Polycarbonate
• Mounting Bolt Drill: 0.25”
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316
• Operating Temperature: -40°F To +140°F
• Protection: Reverse Polarity
• Mounting: Side & Rear
• Limited Lifetime Warranty

Specifications:

• Length: 42”
• Wattage: 400W
• Raw Lumens: 33,600lm
• Lux at 10m: 11500
• Current Consumption @ 13.8V: 13.5A
• IP Rating: IP67

Vehicle Applications:

• Universal
